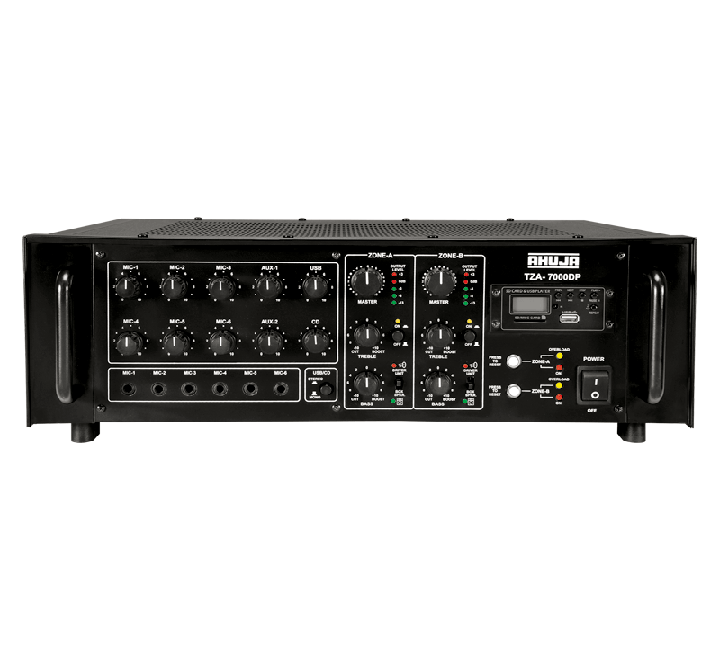

TZA-7000DP

TZA-7000DP
700 WATTS with Built-in Digital Player
2 ZONE PA MIXER AMPLIFIER
6 Mic, 2 Aux Inputs and CD/Stereo music input (L&R)
Built-in MP3 player with remote control and LCD display for USB, SD/MMC card reader.
Stereo/Mono switch to change ambience of MP3 music player & CD/Stereo music for DJ programmes.
Facilitates connection and operation of two separate groups of speakers simultaneously. Ideal for Places of Worship.
Line Input & Output on each zone for connecting to a Mixer and Booster Amplifier respectively. Preamplifier output for recording.
Box Speaker/Driver Unit selector switch for each zone. Bass boost defeated at Driver Unit position for safer operation of driver units. Zone On/Off facility.
Resettable circuit breaker for protection against overload and short circuit.
Instant transfer to DC power (Car Battery) if AC power fails.

Power Output
500W + 500W Max., 350W + 350W RMS at 10% THD, 300W + 300W RMS at 5% THD, 280W + 280W RMS at 2% THD
Output Regulation
? 2 dB, no load to full load at 1kHz
Input Channels
Mic/Aux 6 ? Mic 0.6mV/4.7k?, 2 ? Aux 100mV/470k?, Stereo Music Mode: L/R 200mV/100k?, Line L/R 1V/20k?
Frequency Response
50-15,000Hz ?3dB
Signal to Noise Ratio
60dB
Tone Controls
Bass: ?10dB at 100Hz, Treble: ?10dB at 10kHz
Output
Preamp 200mV/600?, Line 1V/1k?
Speaker Output
4?, 8?, 70V & 100V for each zone
Digital Player
MP3 Player with USB, SD and MMC Card Reader
Power Supply
AC: 220-240V 50/60Hz?DC: 36V (3?12V Car Battery)
Power Consumption
AC: 1100VA?DC: 13A
Dimensions
W510 ? H185 ? D470 mm
Weight
40.0kg
