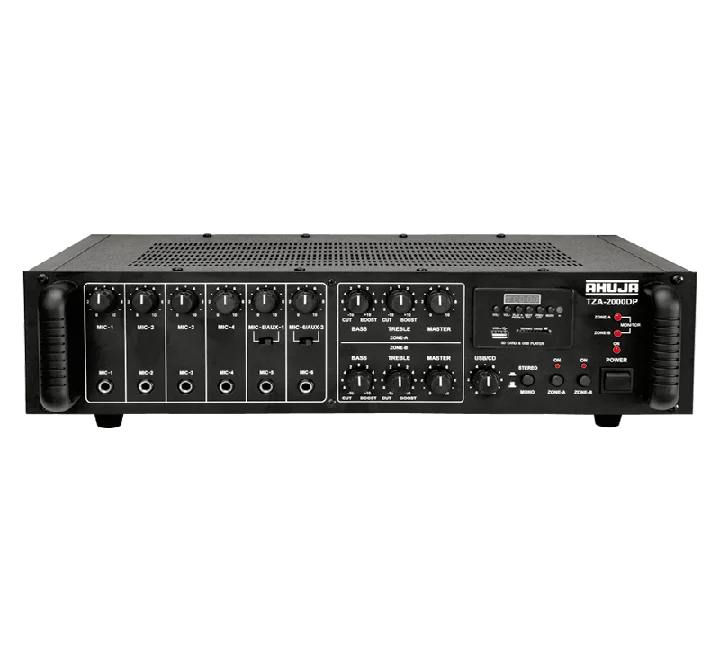

TZA-2000®DP

TZA-2000?DP
200 WATTS WITH BUILT-IN DIGITAL PLAYER
2 ZONE PA MIXER AMPLIFIER
Power Output
130W + 130W Max., 100W + 100W RMS at 10% THD, 90W + 90W RMS at 5% THD, 80W + 80W RMS at 2% THD
Output Regulation
? 2 dB, no load to full load at 1kHz
Input Channels
Mono: 6 ? Mic 0.65mV/4.7k?, 2 ? Aux 100mV/470k?, Stereo: L/R 250mV/47k?
Frequency Response
50-15,000Hz ?3dB
Signal to Noise Ratio
60dB
Tone Controls
Bass: ?10dB at 100Hz, Treble: ?10dB at 10kHz
Output
Preamp 200mV/600?, Line 1V/1k?
Speaker Output
4?, 8?, 70V & 100V for each zone
Digital Player
MP3 Player with USB, SD and MMC Card Reader
Power Supply
AC: 220-240V 50/60Hz?DC: 24V (2?12V Car Battery)
Power Consumption
AC: 420VA?DC: 6.5A
Dimensions
W500 ? H140 ? D340 mm
Weight
17.5kg
6 Mic, 2 Aux Inputs and CD/Stereo input (L&R)
Built-in MP3 player with remote control for USB, SD/MMC card reader.
TZA-2000DP is ideal for medium sized installations such as in places of worship where two separate groups of speakers are needed to be connected.
User has a choice to connect both the zones to 100V (LMT) type speakers, or 100V speakers to one zone and low impedance type speakers to the other zone. Both the zones can also be connected to low impedance type speakers.
Easy accessibility of DC fuses fitted on rear panel.
Instant transfer to DC power (Car Battery) if AC power fails.
