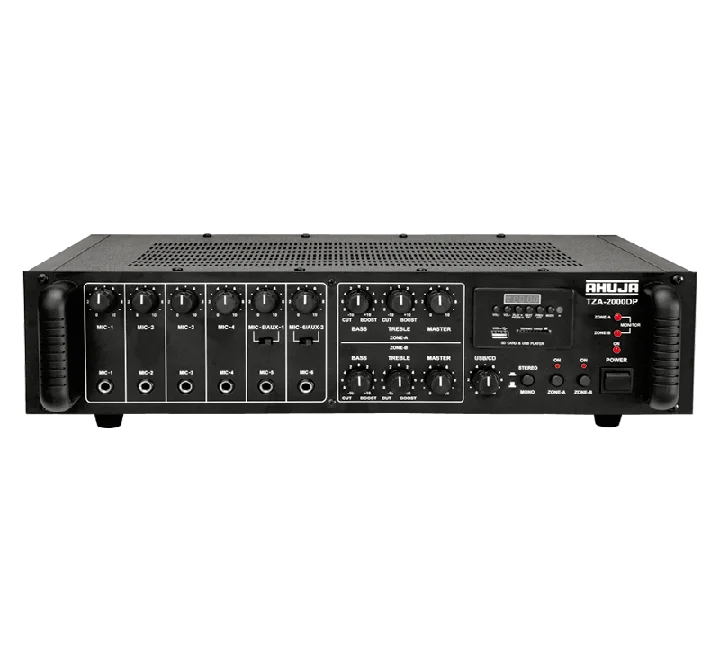

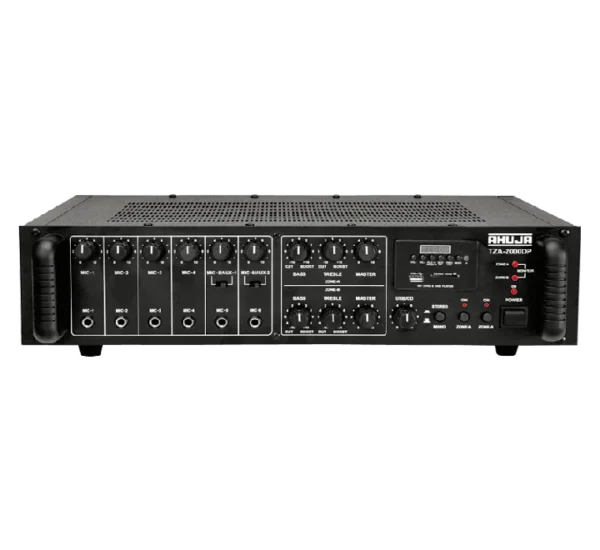

TZA-2000®

TZA-2000^®

200 WATTS
2 ZONE PA MIXER AMPLIFIER

6 Mic & 2 Aux Inputs.
100W+100W power output.
?Stereo? music oper
Power Output
130W + 130W Max., 100W + 100W RMS at 10% THD, 90W + 90W RMS at 5% THD, 80W + 80W RMS at 2% THD
Output Regulation
? 2 dB, no load to full load at 1kHz
Input Channels
Mono 6 ? Mic 0.6mV/4.7k?, 2 ? Aux 100mV/470k?, Stereo L/R 250mV/47k?
Frequency Response
50-15,000Hz ?3dB
Signal to Noise Ratio
60dB
Tone Controls
Bass: ?10dB at 100Hz, Treble: ?10dB at 10kHz
Outputs
Preamp 200mV/600?, Line 1V/1k?
Speaker Outputs
4?, 8?, 70V & 100V for each zone
Power Supply
AC: 220-240V 50/60Hz?DC: 24V (2?12V Car Battery)
Power Consumption
AC: 420VA?DC: 6.5A
Dimensions
W500 ? H140 ? D340 mm
Weight
17.4kg
operation have been provided.
TZA-2000 is ideal for medium sized installations such as in places of worship where two separate groups of speakers are needed to be connected.
User has a choice to connect both the zones to 100V (LMT) type speakers, or 100V speakers to one zone and low impedance type speakers to the other zone. Both the zones can also be connected to low impedance type speakers.
