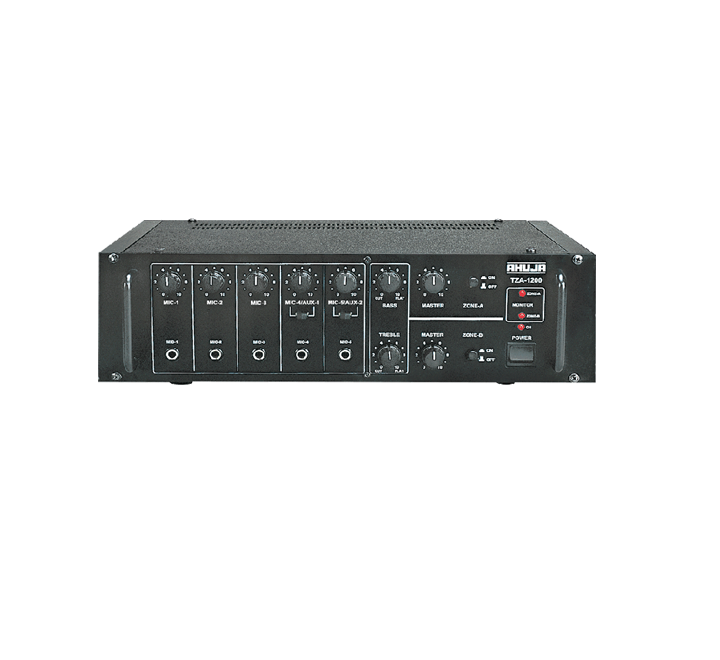

TZA-1200®

TZA-1200?
120 WATTS
2 ZONE PA MIXER AMPLIFIER
Power Output
90W + 90W Max., 60W + 60W RMS at 10% THD, 55W + 55W RMS at 5% THD, 50W + 50W RMS at 2% THD
Output Regulation
? 2 dB, no load to full load at 1kHz
Input Channels
5 ? Mic 0.6mV/4.7k?, 1 ? Aux 100mV/470 k?, 1 ? Aux 200mV/250k? (RCA Jack)
Frequency Response
70-15,000Hz ?3dB
Signal to Noise Ratio
60dB
Tone Controls
Bass: -10dB at 100Hz, Treble: -10dB at 10kHz
Outputs
Preamp 200mV/600?
Speaker Outputs
4?, 8?, 16? & 100V for each zone
Power Supply
AC: 220-240V 50/60Hz?DC: 12V (12V Car Battery)
Power Consumption
AC: 250VA?DC: 5A
Dimensions
W400 ? H130 ? D290 mm
Weight
10.1kg
5 Mic & 2 Aux Inputs.
60W+60W power output.
Connecting two groups of speakers, preamplifier output, bass and treble controls, zone On/Off facility, AC/DC operation have been provided.
TZA-1200 is suitable for small sized installations such as in places of worship where both external and internal speakers are required to be connected with different sound level settings.
