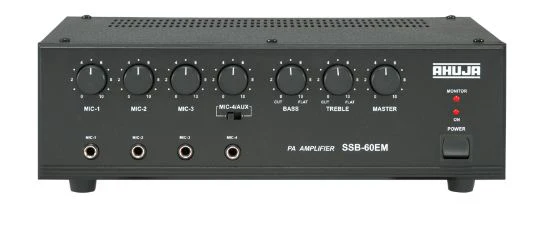

SSB-60?EM
60 WATTS
MEDIUM WATTAGE PA MIXER AMPLIFIER
Power Output
90W Max., 65W RMS at 10% THD, 60W RMS at 5% THD, 50W RMS at 2% THD
Output Regulation
? 2 dB, no load to full load at 1kHz
Input Channels
4 ? Mic 0.65mV/4.7k?, 1 ? Aux 100mV/470 k?
Frequency Response
50-15,000Hz ?3dB
Signal to Noise Ratio
60dB
Tone Controls
Bass: -10dB at 100Hz, Treble: -10dB at 10kHz,
Speaker Outputs
4?, 8?, 16? & 100V
Power Supply
AC: 220-240V 50/60Hz, DC: 12V (12V Car Battery)
Power Consumption
AC: 160VA?DC: 3A
Dimensions
W350 ? H120 ? D265 mm
4 Mic & 1 Aux Inputs.
Preamplifier Output for connecting to a Booster Amplifier and for recording the programme.
Instant transfer to DC power (Car Battery) if AC power fails.
Cut type Bass & Treble Controls.
