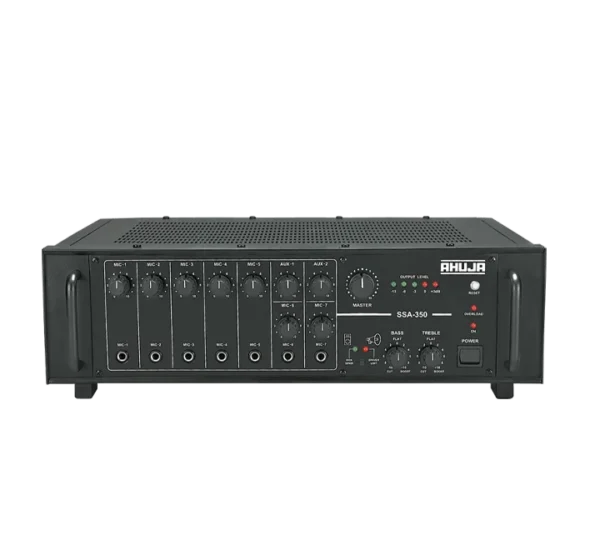

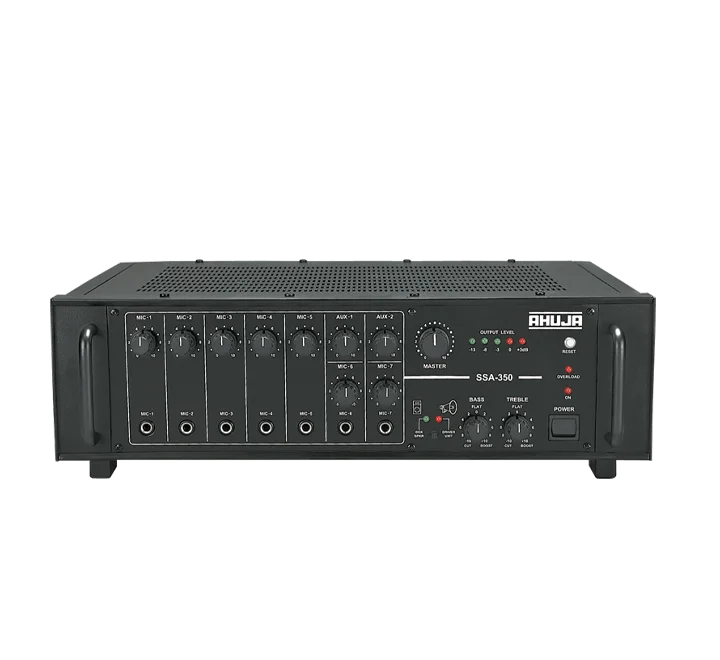

SSA-350

SSA-350
350 WATTS
High Wattage PA Mixer Amplifier
Power Output
450W Max., 350W RMS at 10% THD, 320W RMS at 5% THD, 300W RMS at 2% THD
Output Regulation
? 2 dB, no load to full load at 1kHz
Input Channels
7 ? Mic 0.8mV/4.7k?, 1 ? Aux 100mV/470k?, 1 ? Aux 200mV/470k?, 1 ? Line 1V/50k?
Frequency Response
50-15,000Hz ?3dB
Signal to Noise Ratio
60dB
Tone Controls
Bass: ?10dB at 100Hz, Treble: ?10dB at 10kHz
Outputs
Preamp 200mV/600?, Line 1V/1k?
Speaker Outputs
4?, 8?, 70V & 100V
Power Supply
AC: 220-240V 50/60Hz?DC: 36V (3 ? 12V Car Battery)
Power Consumption
AC: 660VA?DC: 6A
Dimensions
W480 ? H160 ? D360 mm
Weight
20.5kg
7 Mic & 2 Aux Inputs.
Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme.
Line Input for connecting the output from any external mixer or permitting SSA-350 to be used as a Booster Power Amplifier.
Resettable circuit breaker for protection against overload and short circuit.
Instant transfer to DC power (Car Battery) if AC power fails.
Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
