SK-12FR?X/FR?Z

Availability:

25 in stock


2,194.92

25 in stock

SK-12FR?X/FR?Z

Power Rating 100W RMS
Nominal Diameter 305mm (12”)
Nominal Impedance 8Ω/16Ω
Sensitivity (1W/1m ) 97dB
Magnet Weight 1.1kg
Resonant FrequenceY (Fs) 50Hz
DC Resistance (Re) 6.4Ω/13.0Ω
Electromagnetic Q (Qes) 0.758
Mechanical Q (Qms) 9.36
Total Q (Qts) 0.7
Compliance Equivalent Volume (VAS) 104 Litr
Surface Area of Cone (Sd) 510cm2
Reference Efficiency (ηo) 1.7%
Voice Coil Diameter 1.5”
Overhang (Xmax) 1.5 mm
Moving Mass (Mms) 35.23gm
BL Product (BL) 9.7TM
Coil Inductance (Le) 0.79mH
Overall Diameter 311 mm
Depth 130 mm
Baffle Hole Diameter 285 mm
Bolt Mount Diameter (PCD) 292 mm (8 Bolts)
Weight 3.20kg

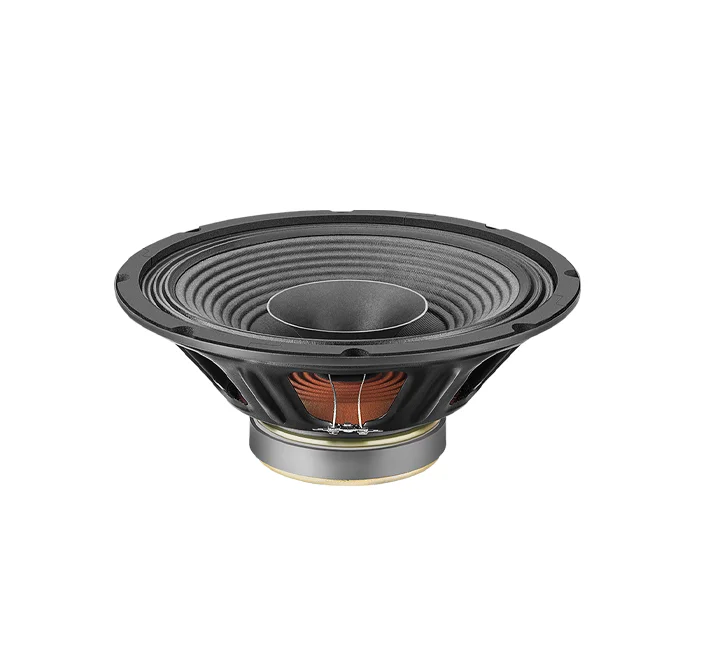

SK-12FR®X/FR®Z

100 WATTS

High Efficiency 30.48mm (12”) Dual Cone Full Range Speaker

  • They are 30.48CM (12″) dual cone full range PA speakers with a very wide frequency range 55-16,000Hz.
  • Impedance of SK-12FRX is 8Ω and SK-12FRZ is 16Ω.
  • High quality specially designed imported parts for low distortion and a clean transparent sound.
