L15-MB300

Availability:

25 in stock


4,567.80

25 in stock

L15-MB300

Power Rating 300W RMS
Nominal Diameter 380mm (15”)
Nominal Impedance 8Ω
Sensitivity (1W/1m ) 99dB
Magnet Weight 2.31kg
Resonant FrequenceY (Fs) 45Hz
DC resistance (Re) 5.7Ω
Electromagnetic Q (Qes) 0.32
Mechanical Q (Qms) 5.82
Total Q (Qts) 0.3
Compliance Equivalent Volume (VAS) 139.65Litr
Surface Area of Cone (Sd) 830cm2
Reference Efficiency (ηo) 4.35%
Voice Coil 3.0”
Overhang (Xmax) 2.5 mm
Moving Mass (Mms) 80.31gm
BL Product (BL) 20.49TM
Coil Inductance (Le) 0.68mH
Overall Diameter 395 mm
Depth 160 mm
Baffle Hole Diameter 358 mm
Bolt Mount Diameter (PCD) 373 mm (8 Bolts)
Weight 8.15kg
SKU: SEB-111 Categories: , , ,

L15-MB300

300 WATTS

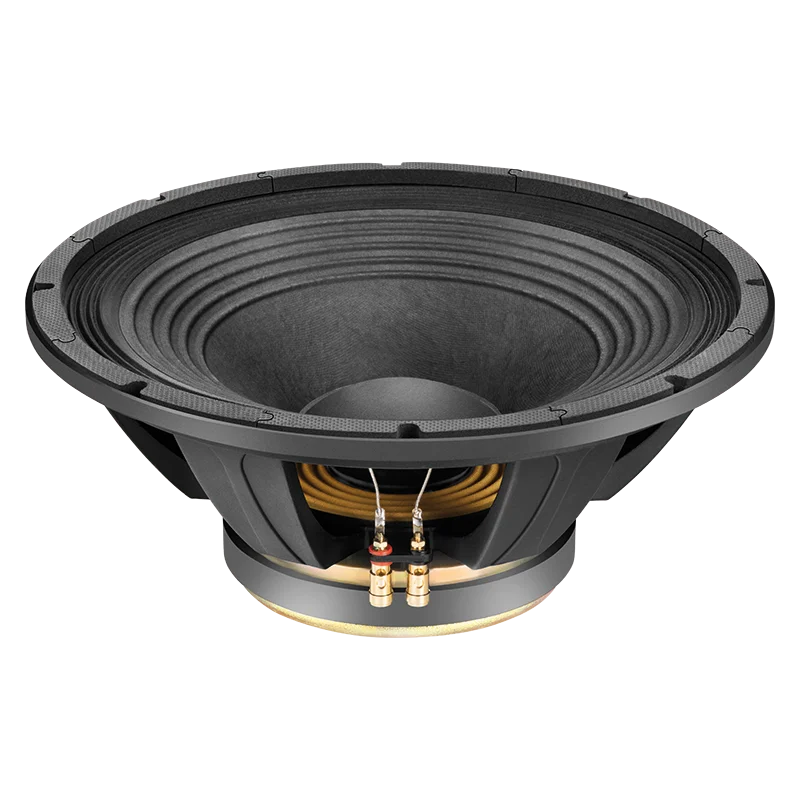

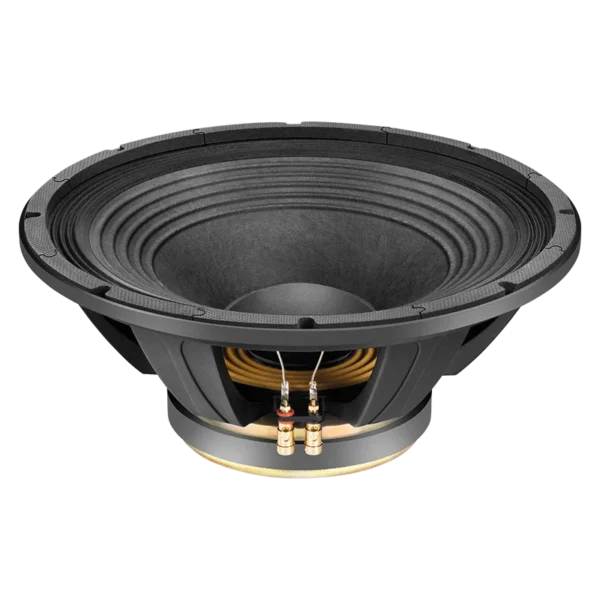

High Power 38.1cm (15”) Low Frequency Speaker

  • Excellent low and mid frequency response, Ideal for bass and bass-midrange applications in bass reflex cabinets.
  • Aluminium die-cast frame with vented-gap cooling technique.
  • 7.62cm (3”) Aluminium wire voice coil withstands high temperature.
  • Gold plated push type heavy duty terminals for firm connection.
