CDH-200

Availability:

25 in stock


1,533.90

25 in stock

CDH-200

Power Capacity 20W RMS
Throat Diameter 25.4 mm (1”)
Nominal Impedance 8Ω
Sensitivity (1W/1m ) 105dB
Usable Frequency Range 3kHz-15kHz
Recommended Crossover 4kHz 12dB/oct
Voice Coil Diameter 25.4 mm
Diaphragm Material Phenolic Resin
Voice Coil Material Round Copper Wire
Voice Coil Former Nomex
Horn Material ABS with Glass Filled Black Polycarbonate
Nominal Coverage Angle H100° x V80° (-5 dB)
Horn Cut off Frequency 780Hz
Mounting Cutout W235 × H82 mm
Overall Dimensions W270 × H110 × D205 mm
Weight 1.36kg
SKU: SEB-99 Categories: , , ,

CDH-200

20 WATTS

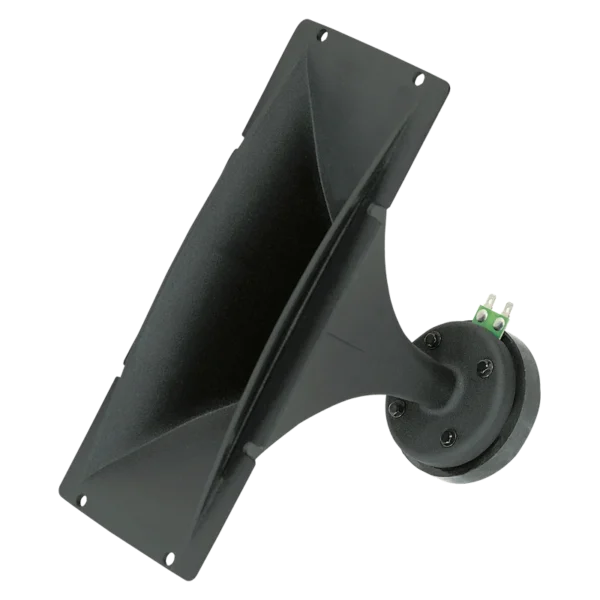

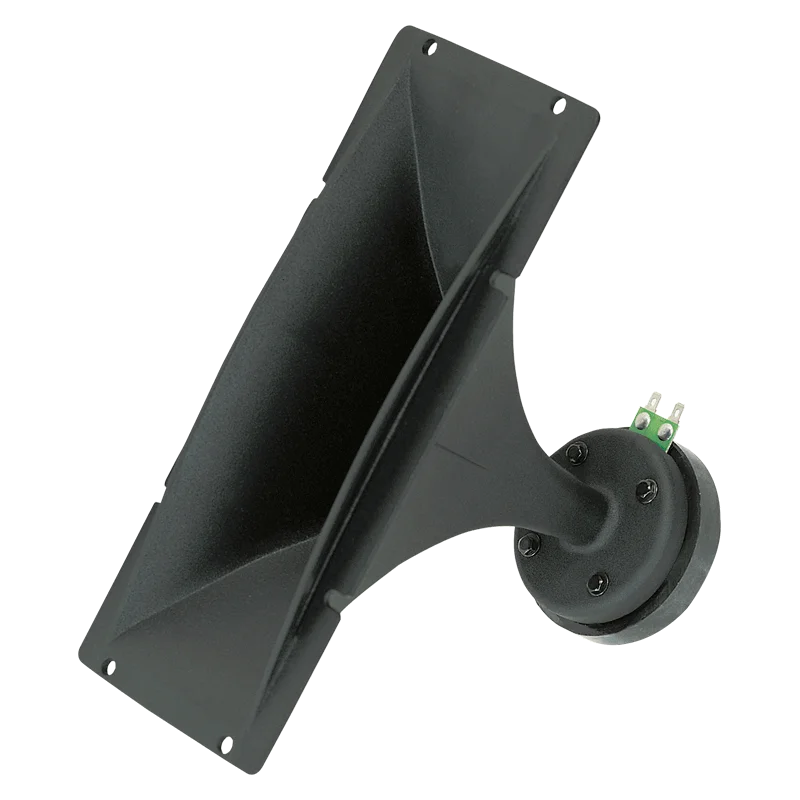

PA Compression Horn Driver

  • Professional compression driver-horn CDH-200 loudspeaker, is suitable for medium power speaker systems. It is ideal for use in a 200W to 300W system. Can be combined with a single Low Frequency speaker like L12-MB150 or L15-MB300, to make an excellent medium power full range speaker system.
