CD-50S

Availability:

25 in stock


1,495.76

25 in stock

CD-50S

Power Capacity 50W RMS
Throat Diameter 25.4 mm (1”)
Nominal Impedance 8Ω
Sensitivity (1W/1m ) 106dB (with Horn)
Usable Frequency Range 1,500-18,000Hz
Recommended Crossover 2.5kHz 18db/oct
Voice Coil Diameter 44.4 mm
Diaphragm Material Titanium
Voice Coil Material Edge Wound Copper Clad Aluminium Ribbon
Voice Coil Former Resin Bonded Kapton
Throat Coupling 1-3/8” 18TPI, Throat Couple No.1
Overall Dimensions Ø115 × H66 mm
Weight 1.57kg
SKU: SEB-96 Categories: , , ,

CD-50S

50 WATTS

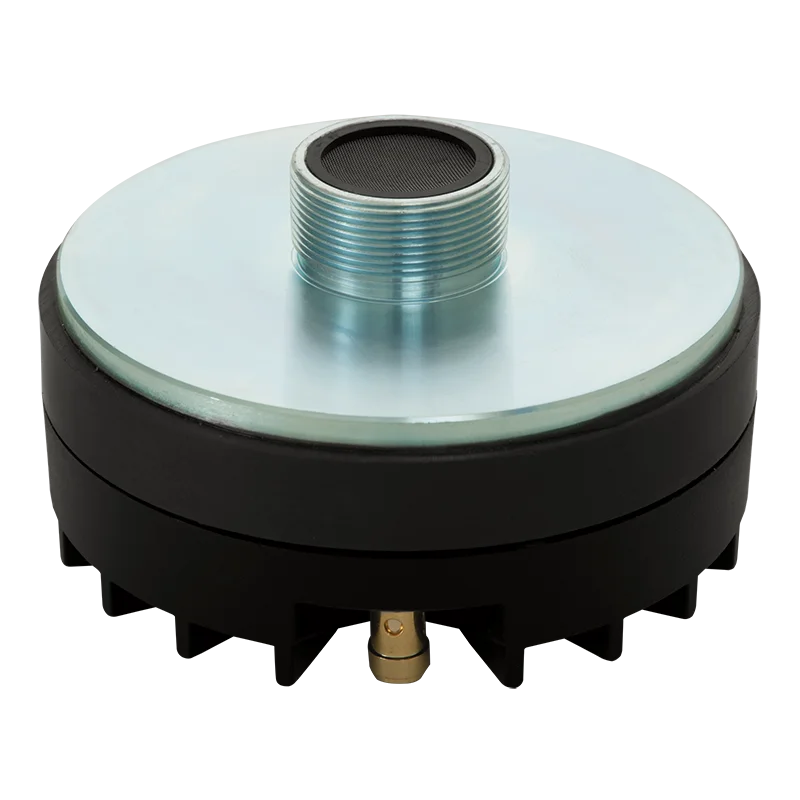

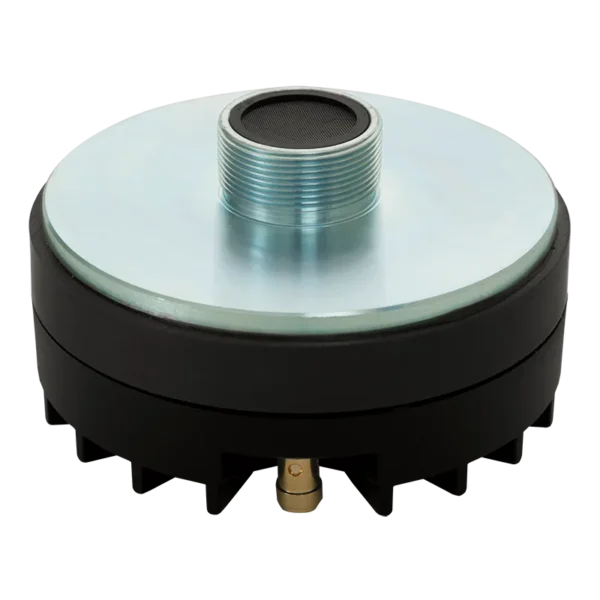

PA Compression Driver

  • Professional compression driver CD-50S, suitable for high power speaker systems. It features TITANIUM diaphragm EDGE WOUND copper clad aluminium ribbon wire voice coil and strontium ferrite magnet for high SPL & superb HF response. With a suitable horn it is ideal for use with low frequency speakers AHUJA L15-MB300, L15-MB400 and L15-MB500.
