C-500/750
| Type | Two-way crossover |
| Power Capacity | 500W |
| Crossover Frequency | 1.2kHz |
| Nominal Impedance | 8Ω |
| Low Pass Filter Slope | 12dB/Octave |
| High Pass Filter Slope | 18dB/Octave with protection |
| Dimensions | W225 x H35 x D169 mm |
| Weight | 1.2kg |

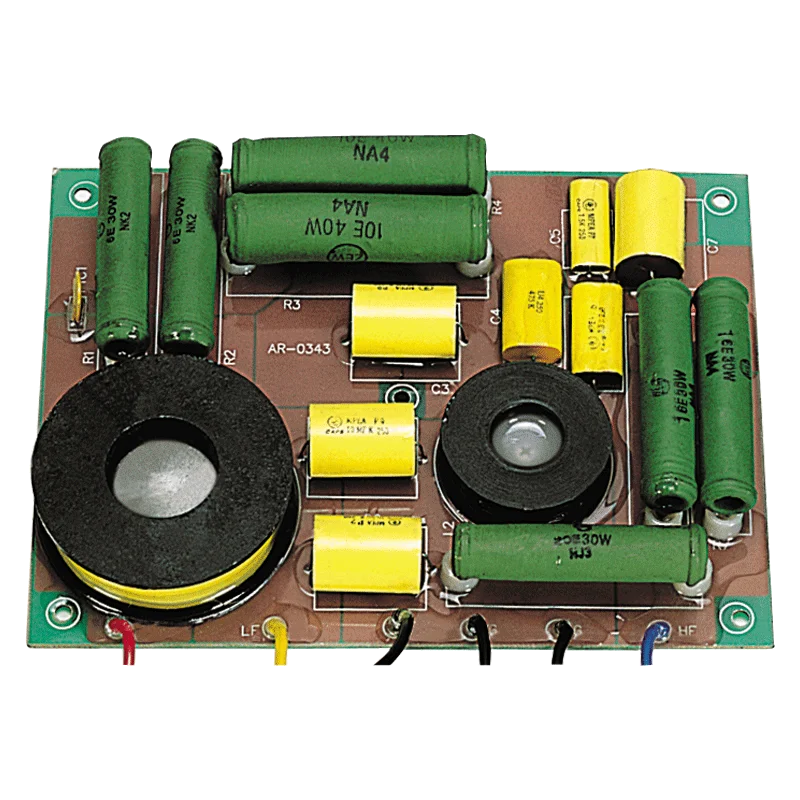

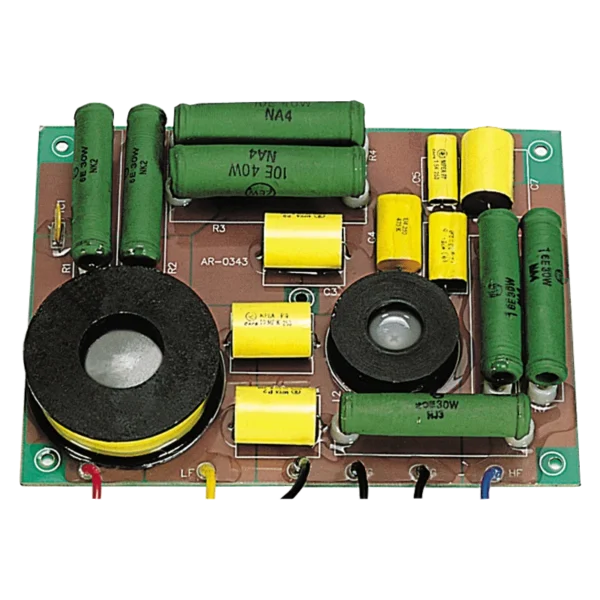

C-500/750
500W RMS
Crossover Network
- Professional 2-Way Passive Crossover Network.
- Designed for use with 1 no. LF woofer AHUJA Model L15-LF500.
- HF driver CDH-1000.
- PTC for HF protection.
- High power and Low resistance Air core coils.
- High quality metallised polyester capacitors.
