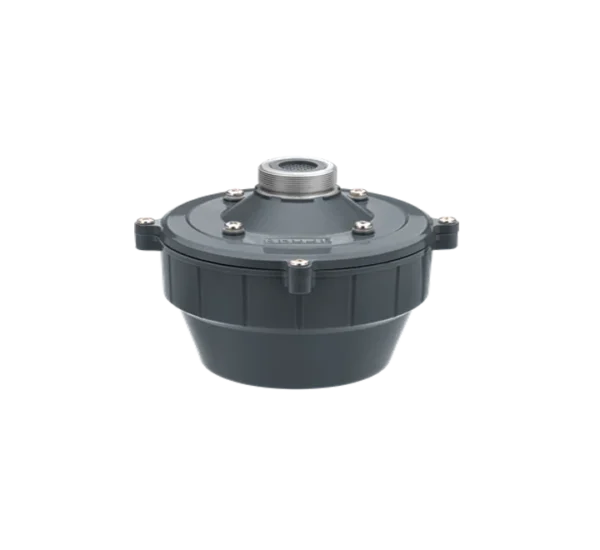

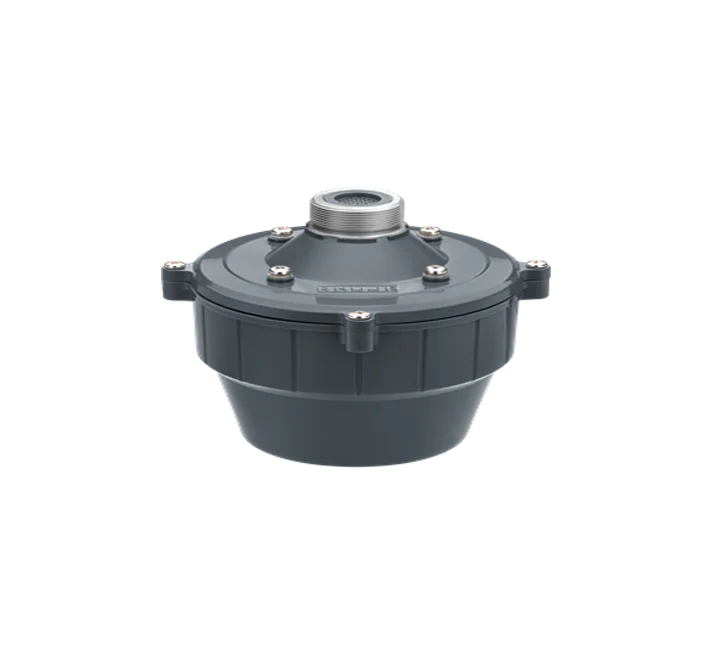

AU-40®XT
| Input Power | 40W Rms/60W Max. |
| Power Taps | On 100V Line 250Ω/40W, 330Ω/30W 500Ω/20W, 1kΩ/10W, 2kΩ/5W |
| Frequency Response | 160-7,000Hz |
| SPL at 1kHz | 112.5dB/1W/1m 128.5dB/40W/1m |
| Temperature Range | -30°to + 70°C |
| Throat Coupling | 1-3/8” – 18TPI, Throat Couple No.1 |
| Dimensions | ø150 x H137 mm |
| Weight | 2.24kg |
| Material | Die-cast Aluminium Acoustic Head (Flange) |
AU-40®XT
40W100V
- Weatherproof and rugged construction.
- High SPL, crisp penetrating sound.
- Voice coils precision-wound on an aluminium bobbin for efficient heat dissipation.
- Model AU-40®XT has a built-in 100V transformer with easily selectable power taps/impedance by changing the position of the rotary switch at the rear.
- Degree of protection IP 66 provided, when mounted on a reflex horn, against foreign particles such as dust and jets of water thus making them ideal for outdoor use. Meets EN 60529.
