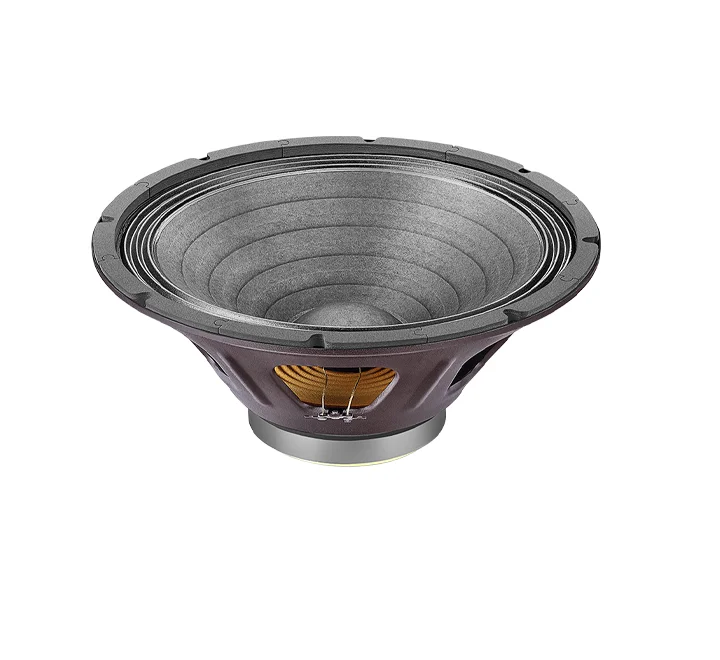

AS15-X200

Availability:

25 in stock


2,953.39

25 in stock

AS15-X200

Power Rating 200W RMS
Nominal Diameter 380 mm (15”)
Nominal Impedance 8Ω
Sensitivity (1W/1m ) 98dB
Magnet Weight 1.54kg
Resonant FrequenceY (Fs) 45Hz
DC resistance (Re) 6.0Ω
Electromagnetic Q (Qes) 0.58
Mechanical Q (Qms) 9.6
Total Q (Qts) 0.54
Compliance Equivalent Volume (VAS) 115 Litr
Surface Area of Cone (Sd) 830cm2
Reference Efficiency (ηo) 2.1%
Voice Coil 2.0”
Overhang (Xmax) 3.5 mm
Moving Mass (Mms) 73gm
BL Product (BL) 13.4TM
Overall Diameter 385 mm
Depth 165 mm
Baffle Hole Diameter 355 mm
Bolt Mount Diameter (PCD) 373 mm (8 Bolts)
Weight 4.9kg
SKU: SEB-116 Categories: , , ,

AS15-X200

200 WATTS

High Quality 38.1cm (15”) Mid-Bass Speaker

  • Sturdy pressed metal frame in elegant brown colour.
  • Special high temperature voice coil for exceptional thermal capabilities.
  • Suitable for use in compact 2-way sealed as well as bass reflex enclosures.
  • Excellent low frequency response makes it ideal for
  • Dandiya-Ras, DJs & General PA applications.
