AS12-X100

Availability:

25 in stock


51,741.53

25 in stock

AS12-X100

Power Rating 100W RMS
Nominal Diameter 305 mm (12”)
Nominal Impedance 8Ω
Sensitivity (1W/1m ) 97dB
Magnet Weight 1.1kg
Resonant FrequenceY (Fs) 70Hz
DC resistance (Re) 6.0Ω
Electromagnetic Q (Qes) 0.79
Mechanical Q (Qms) 5.5
Total Q (Qts) 0.69
Compliance Equivalent Volume (VAS) 74.23 Litr
Surface Area of Cone (Sd) 510cm2
Reference Efficiency (ηo) 3.09%
Voice Coil 1.5”
Overhang (Xmax) 2.0mm
Moving Mass (Mms) 25.5gm
BL Product (BL) 9.2TM
Overall Diameter 311 mm
Depth 130 mm
Baffle Hole Diameter 285 mm
Bolt Mount Diameter (PCD) 292 mm (8 Bolts)
Weight 3.20kg
SKU: SEB-118 Categories: , , ,

AS12-X100

100 WATTS

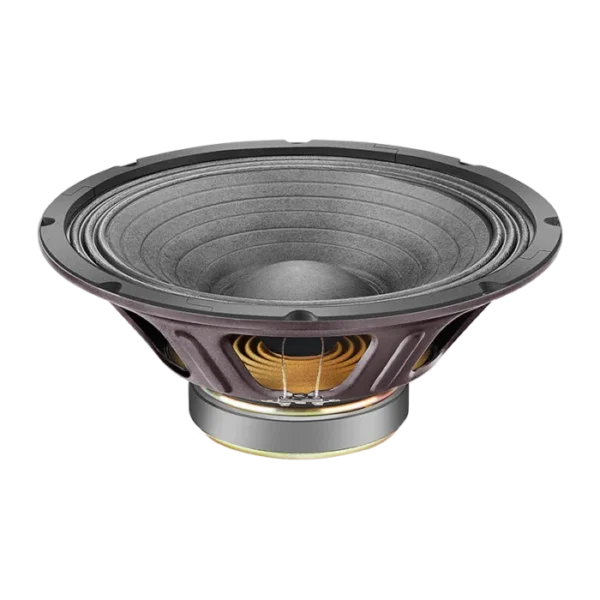

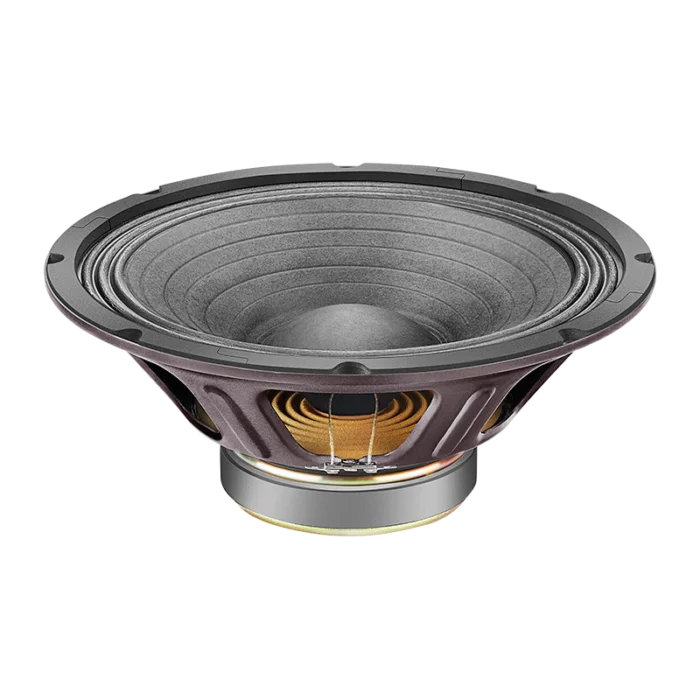

High Quality 30.48cm (12”) Mid-Bass Speaker

  • Sturdy pressed metal frame in elegant brown colour.
  • Kapton former voice coil for withstanding high temperature.
  • Suitable for use in compact 2-way sealed as well as bass reflex enclosures.
  • Excellent low frequency response makes it ideal for Dandiya-Ras, DJs & General PA applications.
