ACX-202

Availability:

25 in stock


4,898.08

25 in stock

Input Sensitivity 1V/20KW
Low, High Out Filter Slope 24dB/Oct
THD <0.01%
Crossover Frequencies For Stereo Mode: 60Hz, 80Hz, 100Hz, 120Hz, 180Hz, 250Hz / For Sub MONO Mode: 80Hz, 120Hz
Frequency Range 20Hz to 20kHz
Signal to Noise Ratio 85dB
Indications Power ON LED, Clip LED
Power Supply AC: 240V 50Hz
Protection AC: Fuse 1Amp. (T 1A L)
Dimensions W483 × H52 × D231 mm
Weight 2.85kg approx.
SKU: SEB-62 Categories: , ,

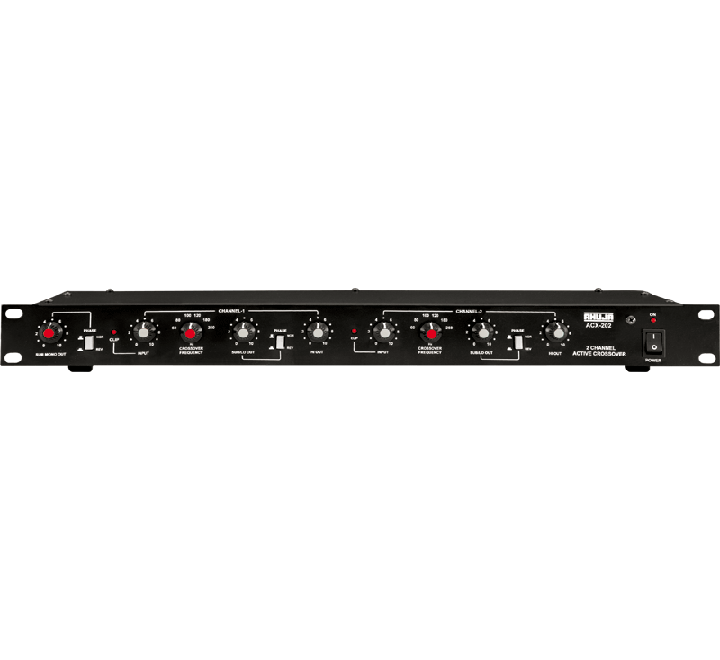

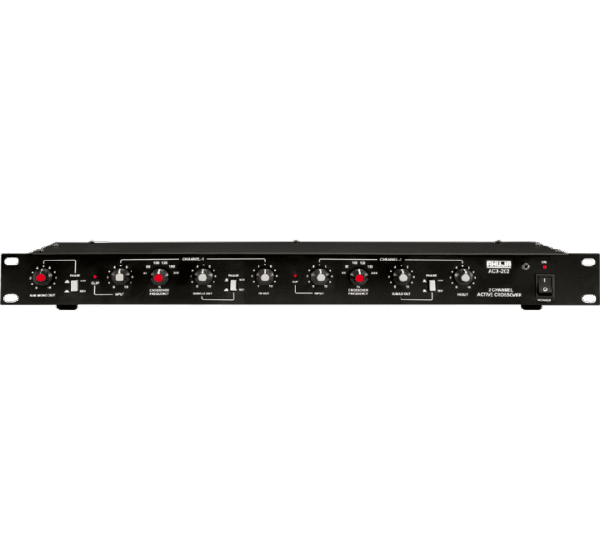

ACX-202

Active Crossover

.

  • A highly reliable, high performance 2 channel active crossover for use with the best cabinet speakers and subwoofers. Apart from top speakers in stereo mode, ACX-202 allows subwoofers to be connected in either stereo or mono mode.
  • Full Stereo mode with Dual High & Low frequency outputs. Six selectable crossover frequencies. Extra sharp 24db / octave filter for very clear separation of frequency bands.
  • Separate output for connecting subwoofer in mono mode, with 2 selectable crossover frequencies & 24db / octave filter.
  • Separate input level controls for each channel, with LED indicator for clipping level.
  • Phase Reversal Facility for Lo Outputs.
  • XLR as well as TRS connectors for balanced inputs & outputs.
