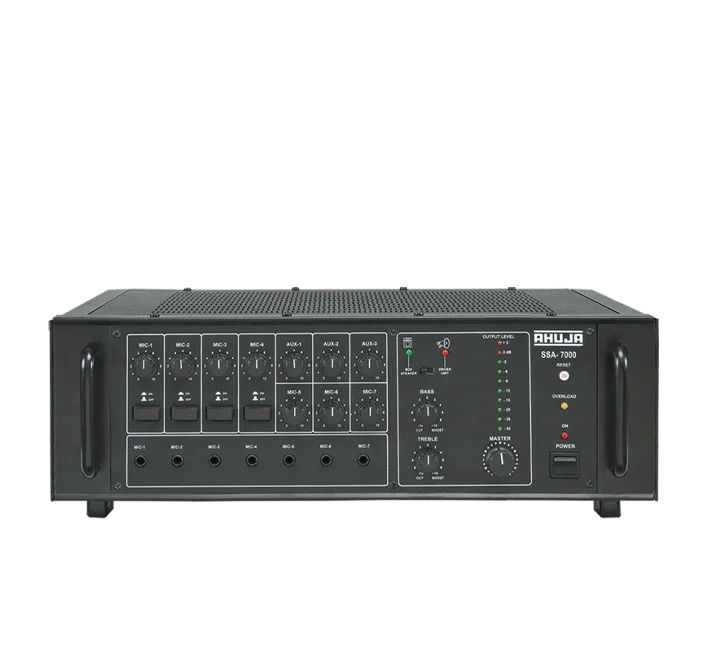

High Wattage PA Mixer Amplifier
950W Max., 700W RMS at 10% THD, 600W RMS at 5% THD, 570W RMS at 2% THD
? 2 dB, no load to full load at 1kHz
7 ? Mic 0.8mV/4.7k?, 2 ? Aux 100mV/50k?
Signal to Noise Ratio
Bass: ?10dB at 100Hz, Treble: ?10dB at 10kHz
Preamp 200mV/600?, Line 1V/1k?
2?, 4?, 70V & 100V
AC: 220-240V 50/60Hz?DC: 36V (3?12V Car Battery)
AC: 1100VA?DC: 11A
W510 ? H185 ? D400 mm
7 Mic & 3 Aux Inputs.
Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme.
Line Input for connecting the output from any external mixer or permitting SSA-7000 to be used as a Booster Power Amplifier.
Resettable circuit breaker for protection against overload and short circuit.
Instant transfer to DC power (Car Battery) if AC power fails.
Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
