L15-MB400

(2 customer reviews)
Availability:

25 in stock


5,864.41

25 in stock

L15-MB400

Power Rating 400W RMS
Nominal Diameter 380mm (15”)
Nominal Impedance 8Ω
Sensitivity (1W/1m ) 99dB
Magnet Weight 2.31kg
Resonant Frequencey (Fs) 40Hz
DC resistance (Re) 6.5Ω
Electromagnetic Q (Qes) 0.41
Mechanical Q (Qms) 8.0
Total Q (Qts) 0.39
Compliance Equivalent Volume (VAS) 168Litr
Surface Area of Cone (Sd) 855cm2
Reference Efficiency (ηo) 2.72%
Voice Coil 3.0”
Moving Mass (Mms) 91gm
BL Product (BL) 18TM
Coil Inductance (Le) 1.1mH
Overall Diameter 389.5 mm
Depth 157 mm
Baffle Hole Diameter 350 mm
Bolt Mount Diameter (PCD) 369 mm (8 Bolts)
Weight 7.8kg
SKU: SEB-110 Categories: , , ,

L15-MB400

400 WATTS

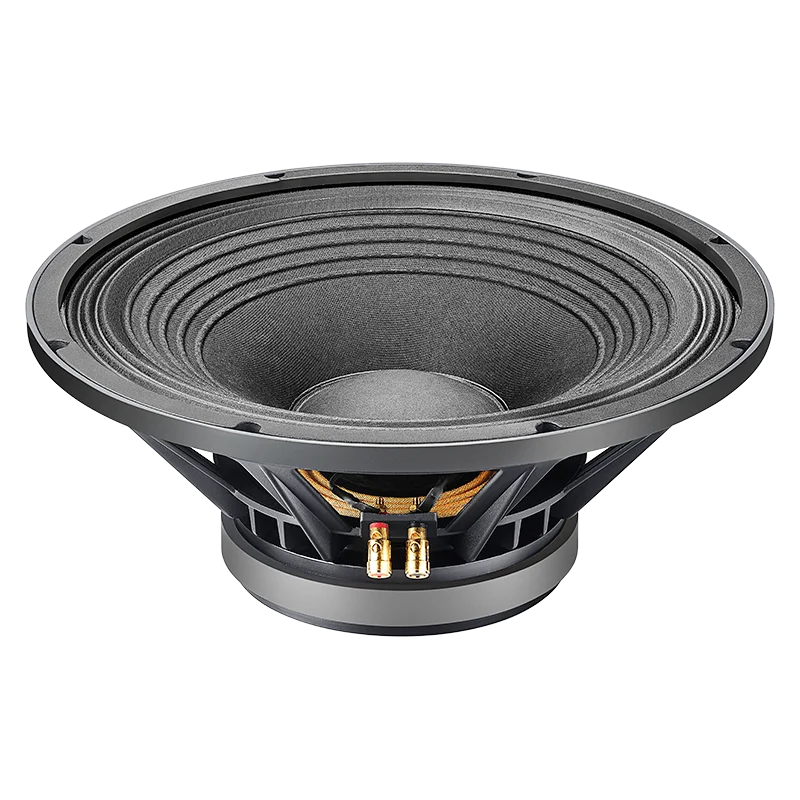

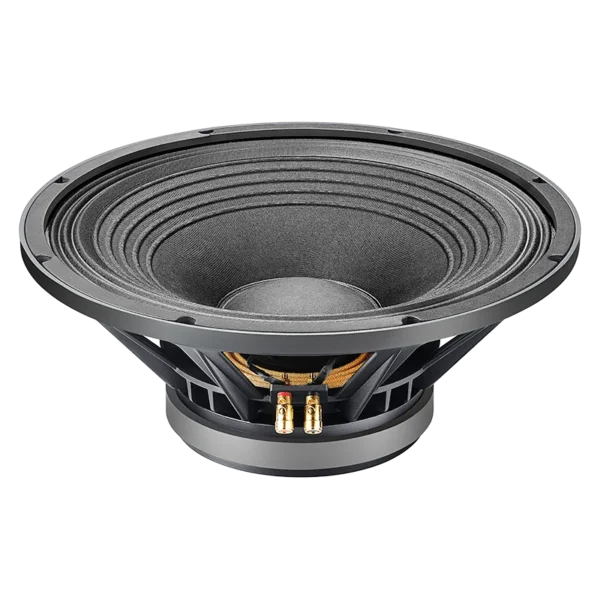

High Power 38.1cm (15”) Low Frequency Speaker

  • Excellent low and mid frequency response.
  • Ideal for high power 2-Way Speaker Systems.
  • Triple roll, exponential cone geometry.
  • High temperature copper clad aluminium wire voice coil wound on polyamide former.
