CDH-1000

Availability:

25 in stock


8,050.85

25 in stock

CDH-1000

Power Capacity 100W RMS
Throat Diameter 50 mm (2”)
Nominal Impedance 8Ω
Sensitivity (1W/1m ) 108dB
Usable Frequency Range 500Hz-18kHz
Recommended Crossover 1.2kHz 18dB/oct
Voice Coil Diameter 72.2 mm
Diaphragm Material Titanium
Voice Coil Material Edge Wound Copper Clad Aluminium Ribbon
Voice Coil Former Resin Bonded Kapton
Horn Material ABS with Glass Filled Black Polycarbonate
Nominal Coverage Angle H90° x V40° (-6dB)
Horn Cut off Frequency 400Hz
Mounting Cutout W375 × H240 mm
Overall Dimensions W440 × H280 × D241 mm (Horn only)
Weight 6.2kg
SKU: SEB-98 Categories: , , ,

CDH-1000

100 WATTS

PA Compression Horn Driver

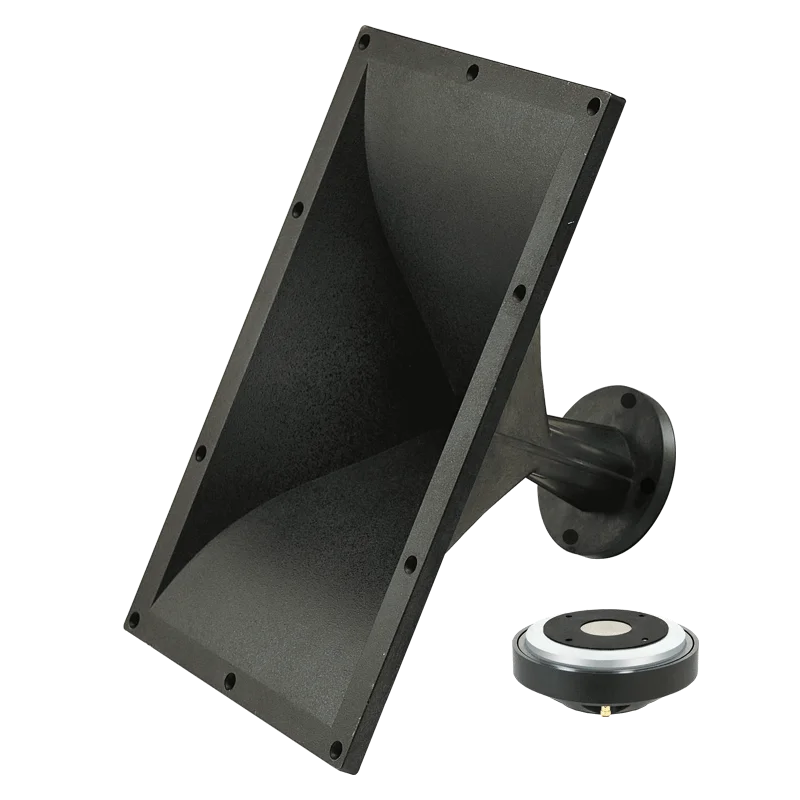

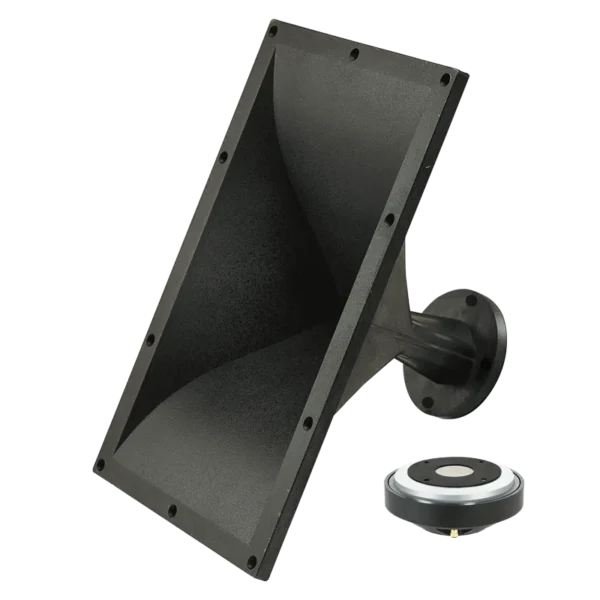

  • Professional heavy duty 5.08cm (2”) throat compression driver-horn loudspeaker CDH-1000 (Horn H-7380 + Driver CD-750) is suitable for very high power speaker systems. It reproduces Mid and High frequencies with superb accuracy. Ideal for use with 2 nos. Low Frequency speakers AHUJA L15-LF500 to make a 1000 watts speaker system. It can also be used with a single L15-LF500. The horn is made of solid glass filled ABS. It has been designed specifically for all outdoor sound reinforcement applications.
