|Power Output||750W Max., 600W RMS at 10% THD, 550W RMS at 5% THD, 500W RMS at 2% THD, 480W RMS at 1% THD|
|Output Regulation||≤ 2 dB, no load to full load at 1kHz|
|Input Channels||1 × 200mV/470kΩ (unbal.), 2 × 1V/50kΩ (bal.), 1 × 100V Input/50kΩ|
|Frequency Response||50-15,000Hz ±3dB|
|Signal to Noise Ratio||60dB|
|Tone Controls||Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz|
|Outputs||Loop through 1 × 200mV/600W, 2 ×1V/1kW|
|Speaker Outputs||4Ω, 8Ω, 70V & 100V|
|Power Supply||AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery)|
|Power Consumption||AC: 1200VA DC: 15A|
|Dimensions||W485 × H142 × D510 mm|

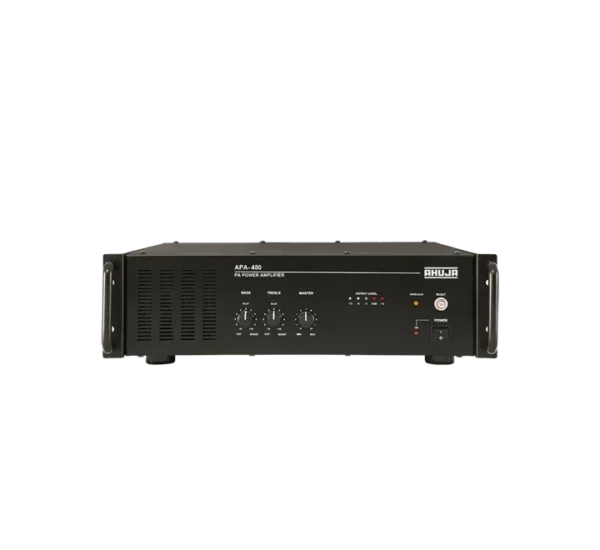

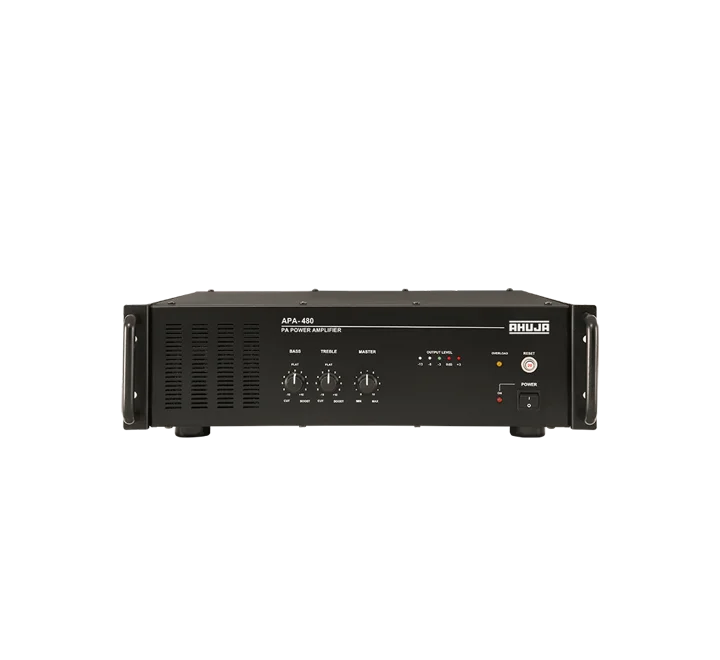

Installation PA Power Amplifier
- 1x Line 200mV unbalanced input and 2xLine 1V balanced inputs through XLR connector, one 1V input having priority over all other inputs.
- 100V input is provided for connecting another amplifier’s output in long line applications.
- Ground lift switch provided at rear panel which helps reducing the hum that occures due to multiple ground loops in the installations.
- Resettable circuit breaker for protection against overload and short circuit.
- Loop through output for connecting another booster amplifier.
- 19” Rack mountable chassis.
- Instant transfer to DC power (Car Battery) if AC power fails.
